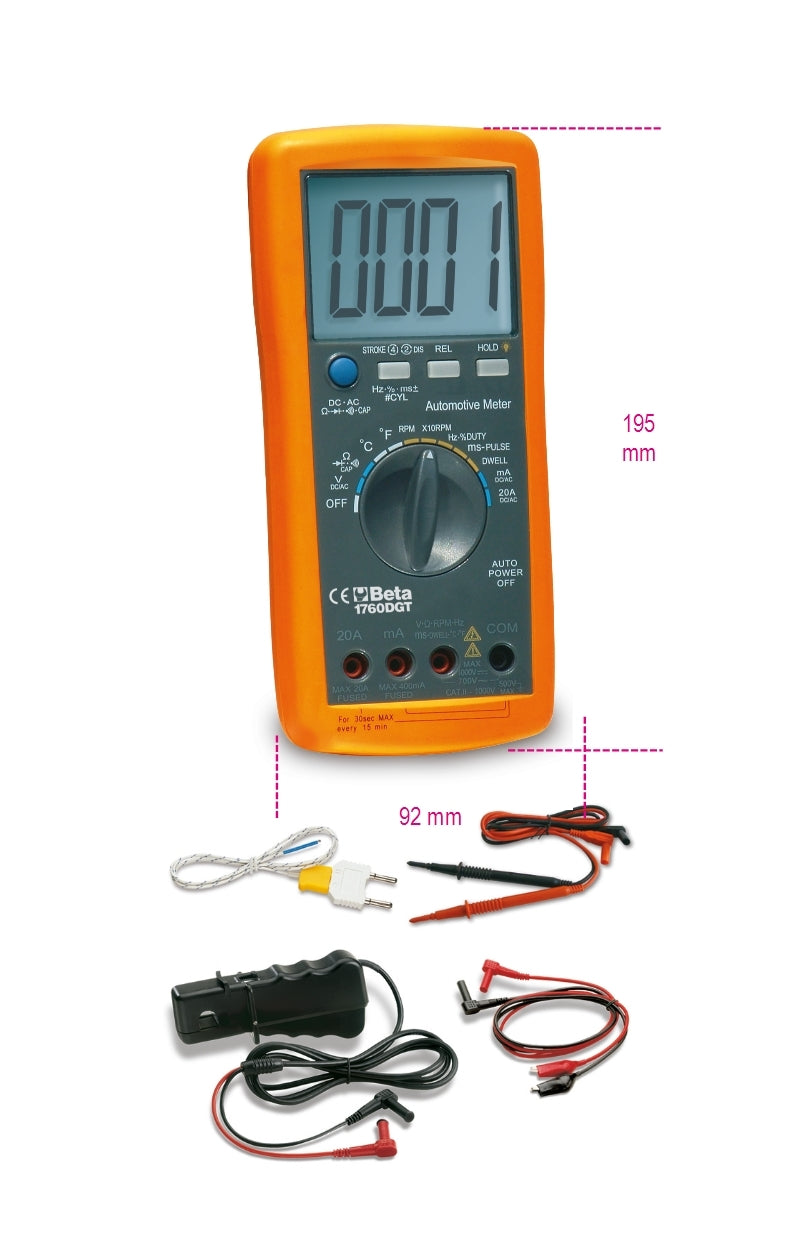

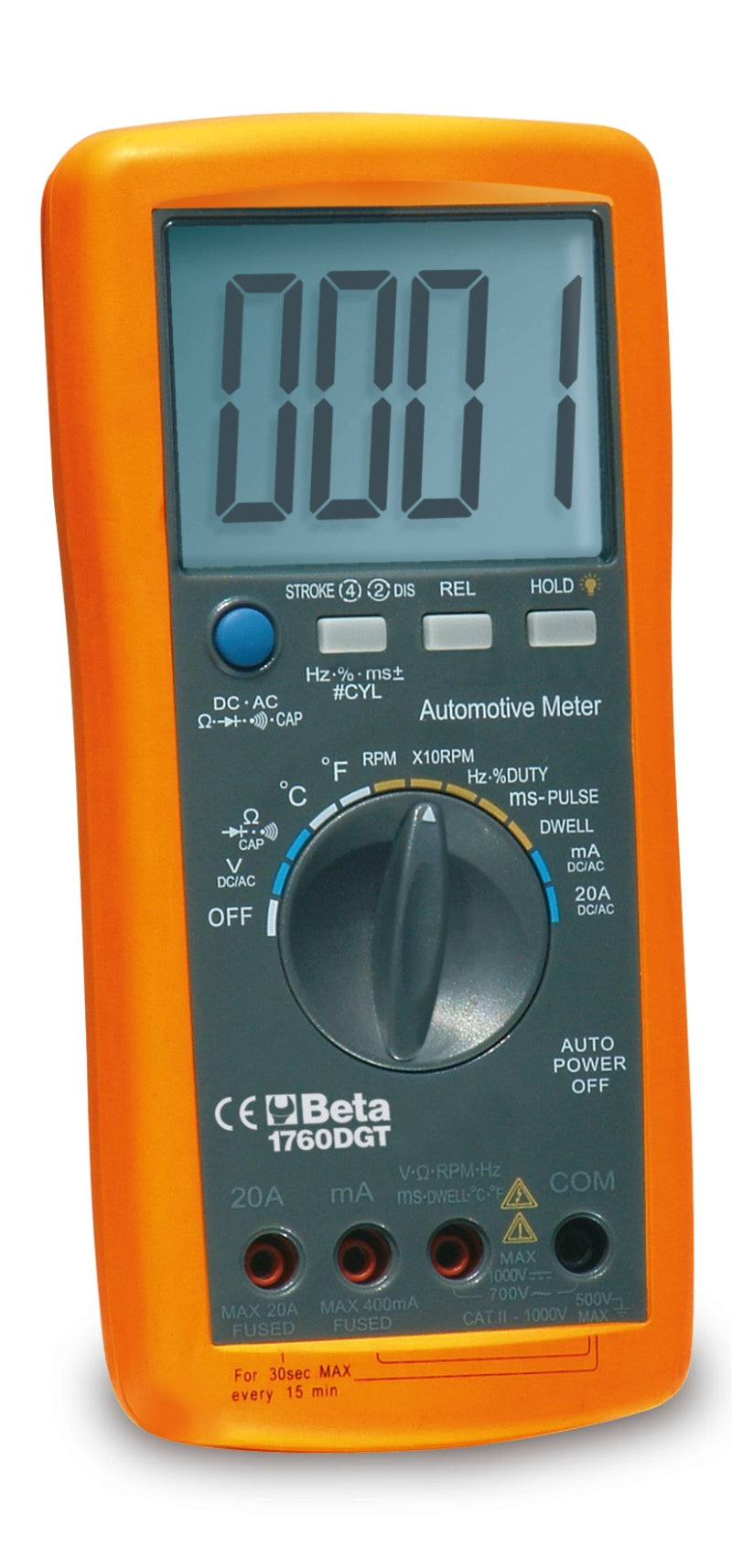

1760DGT-DIGITAL AUTOMOTIVE MULTIMETER
Usually ships within 1-2 business days.
Contact our team for current availability and an estimated lead time.
Enter your postcode to check estimated delivery dates.
Technical Data:
RPM (tachometer):
For 2 and 4 cylinder engines
RPM4 600 - 4000 RPM
RPM4 600 - 12000 RPM (x10 RPM)
RPM2/DIS 300 - 4000 RPM
RPM2/DIS 300 - 6000 RPM (x10 RPM)
Dwell angle: 4-8 CYL
DC voltage: 400mV-4/40/400/1000V
AC voltage: 4/40/400/700V
DC current: 40/400mA-4/20A
AC current: 40/400mA-4/20A
Resistance: 400?-4/40/400k?-4/40M?
Capacity: 40/400nF-4/40/100µF
Frequency: 5/50/500Hz-50/500-10MHz
Duty cycle: 0.1 % - 99.9%
Pulse amplitude: 1 - 10ms
Diode test: Test current 0.3mA
Continuity: <150? - Test current <0.3mA
Display: High-contrast - backlit 4-digit LCD
Overvoltage: Category II 1000V
Auto power off: 30 minutes
Power supply: 1 9V battery (included)

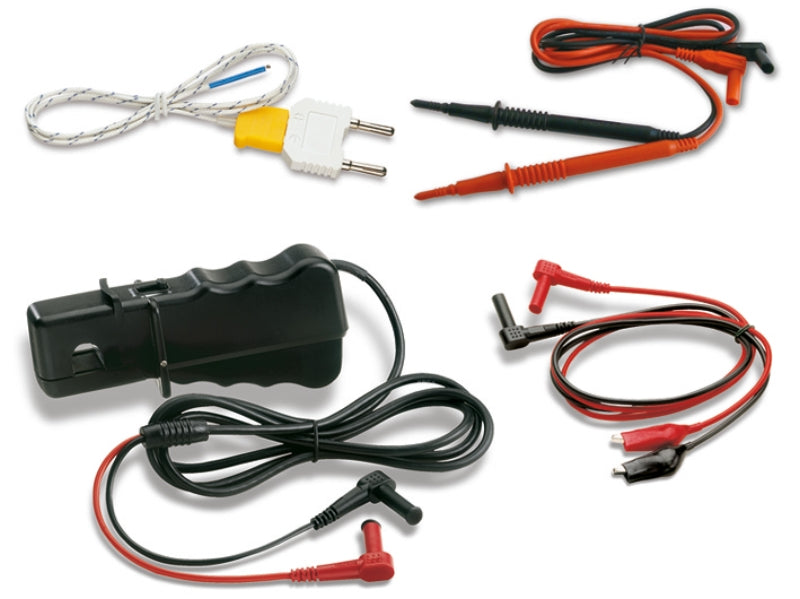

Inductive clamp (included)
2 tips (included)
Soft cloth case (included)
Operating manual
