C48M-ELECTRIC PLATFORM CART, WITH PANELS
Ships in approximately 4-8 weeks.
Contact our team for current availability and an estimated lead time.
Enter your postcode to check estimated delivery dates.

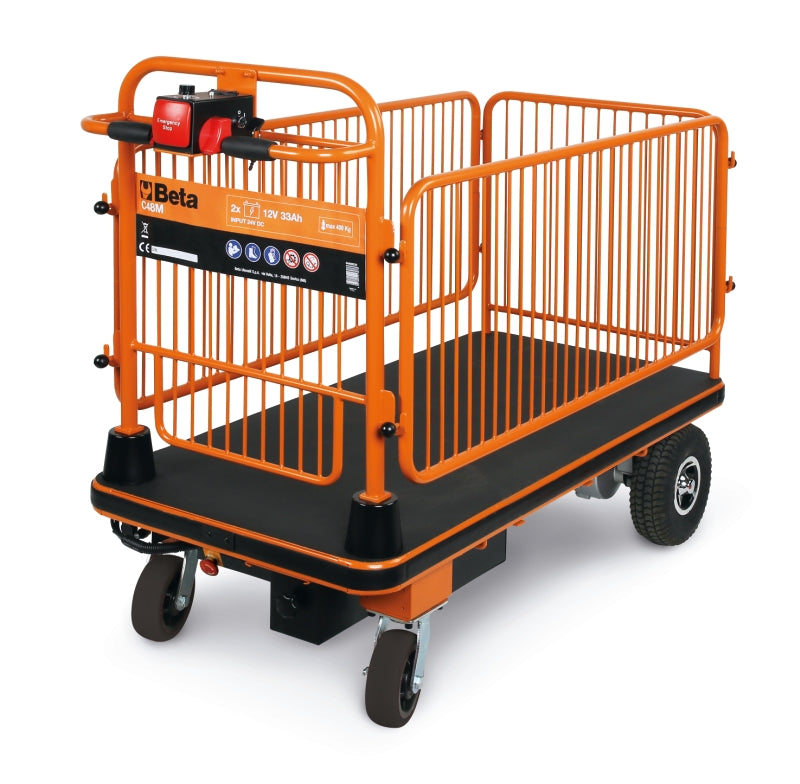

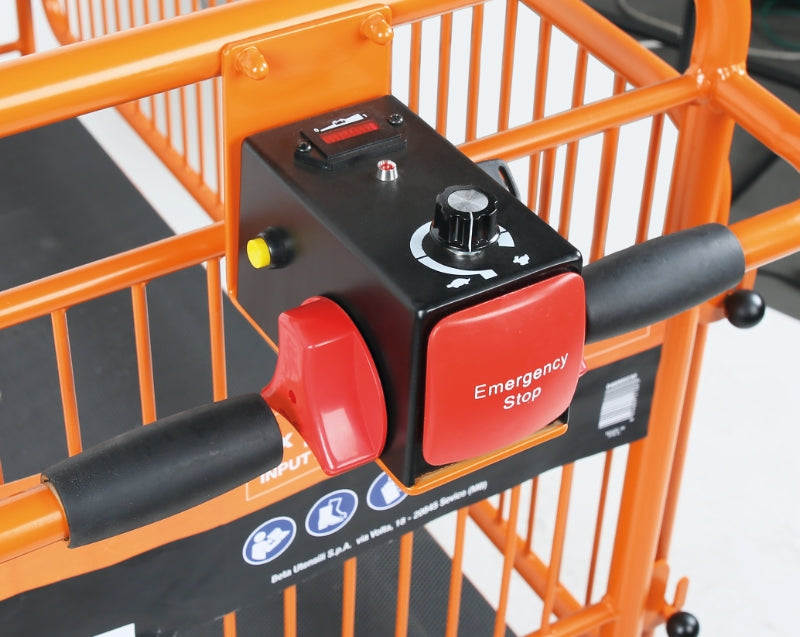

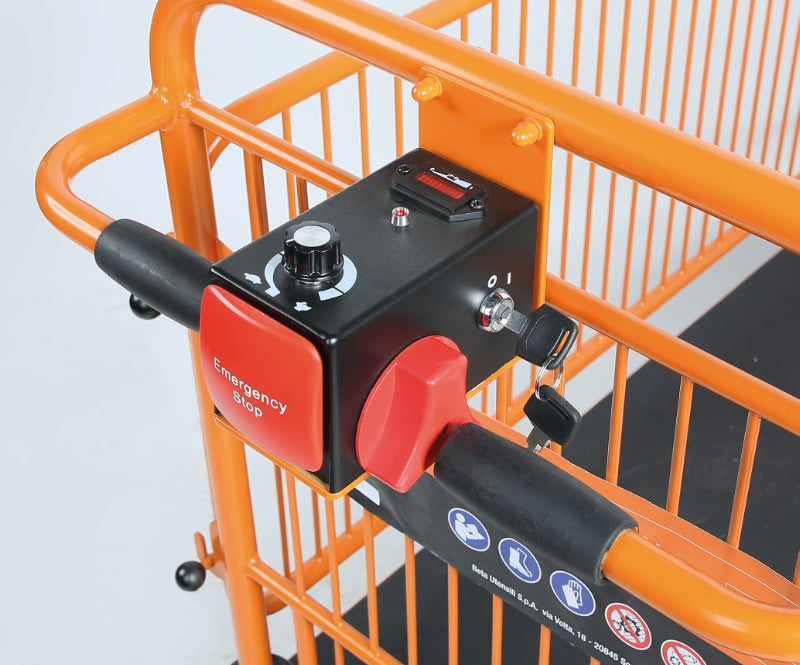

From now on you will save time and effort! Compact dimensions and versatile use make Brutus, the C48M platform cart the ideal solution for handling heavy loads (boxes, containers, bulky objects, parts of equipment) in the power-assisted mode in complete safety, including in hardly accessible areas and in work environments which cannot be accessed via conventional forklift trucks. This results in significantly reduced hazards for operators - e.g. musculoskeletal disorders caused by manual handling of loads. Motorized platform, with 24V - 400W motor with 2x12V 33Ah battery supply and Curtis control card. Loading floor made from sturdy steel, coated with non-slip rubber, with round tubular panels preventing objects from falling during transport. The panels can be removed, to cater to individual transportation requirements. The control console is equipped with the following: ignition key speed adjusting knob side butterfly handles for traction control intermittent beep, which is activated when moving in reverse battery charge indicator electric brake cut-out button emergency mushroom head button. Fitted with 2 pneumatic traction wheels (Ø 260 mm) and 2 swivelling rubber wheels (Ø 150mm), electromagnetic brake and differential gear. Supplied with an external battery charger, 220V/50Hz - V/A 24/12
FUNCTIONAL SPECIFICATIONS Carrying capacity: 400 kg Driving speed: 4-6 km/h (adjustable) Battery life: 4 hours Maximum permitted slope with a full load: 6% Maximum permitted slope with 100 kg load: 18% Safety devices: Electronic brake Buzzer Anti-crushing guard Battery charge indicator Curtis control cart TECHNICAL SPECIFICATIONS Overall dimensions: 1280x630x1100h mm Useful dimensions of loading platform with panels: 1150x570 mm Useful dimensions of loading platform without panels: 1260x620 mm Height of loading platform from floor: 320 mm Height of battery compartment from floor: 65 mm Weight with batteries: 140 kg
Orders are typically delivered within 1-5 business days for metro areas and 7-14 business days for regional areas after dispatch (within 2 business days of payment). Backordered items will take an additional 4-8 weeks. More information.
Beta Tools is a leading provider of high-quality professional tools, renowned for their durability, precision, and innovative design. Trusted by industry professionals worldwide, Beta Tools offers a wide range of products that cater to the needs of mechanics, engineers, and craftsmen. More information.
Technical specifications are not currently available for this product.
Please contact our team for specifications or further product information.
From now on you will save time and effort! Compact dimensions and versatile use make Brutus, the C48M platform cart the ideal solution for handling heavy loads (boxes, containers, bulky objects, parts of equipment) in the power-assisted mode in complete safety, including in hardly accessible areas and in work environments which cannot be accessed via conventional forklift trucks. This results in significantly reduced hazards for operators - e.g. musculoskeletal disorders caused by manual handling of loads. Motorized platform, with 24V - 400W motor with 2x12V 33Ah battery supply and Curtis control card. Loading floor made from sturdy steel, coated with non-slip rubber, with round tubular panels preventing objects from falling during transport. The panels can be removed, to cater to individual transportation requirements. The control console is equipped with the following: ignition key speed adjusting knob side butterfly handles for traction control intermittent beep, which is activated when moving in reverse battery charge indicator electric brake cut-out button emergency mushroom head button. Fitted with 2 pneumatic traction wheels (Ø 260 mm) and 2 swivelling rubber wheels (Ø 150mm), electromagnetic brake and differential gear. Supplied with an external battery charger, 220V/50Hz - V/A 24/12
FUNCTIONAL SPECIFICATIONS Carrying capacity: 400 kg Driving speed: 4-6 km/h (adjustable) Battery life: 4 hours Maximum permitted slope with a full load: 6% Maximum permitted slope with 100 kg load: 18% Safety devices: Electronic brake Buzzer Anti-crushing guard Battery charge indicator Curtis control cart TECHNICAL SPECIFICATIONS Overall dimensions: 1280x630x1100h mm Useful dimensions of loading platform with panels: 1150x570 mm Useful dimensions of loading platform without panels: 1260x620 mm Height of loading platform from floor: 320 mm Height of battery compartment from floor: 65 mm Weight with batteries: 140 kg
