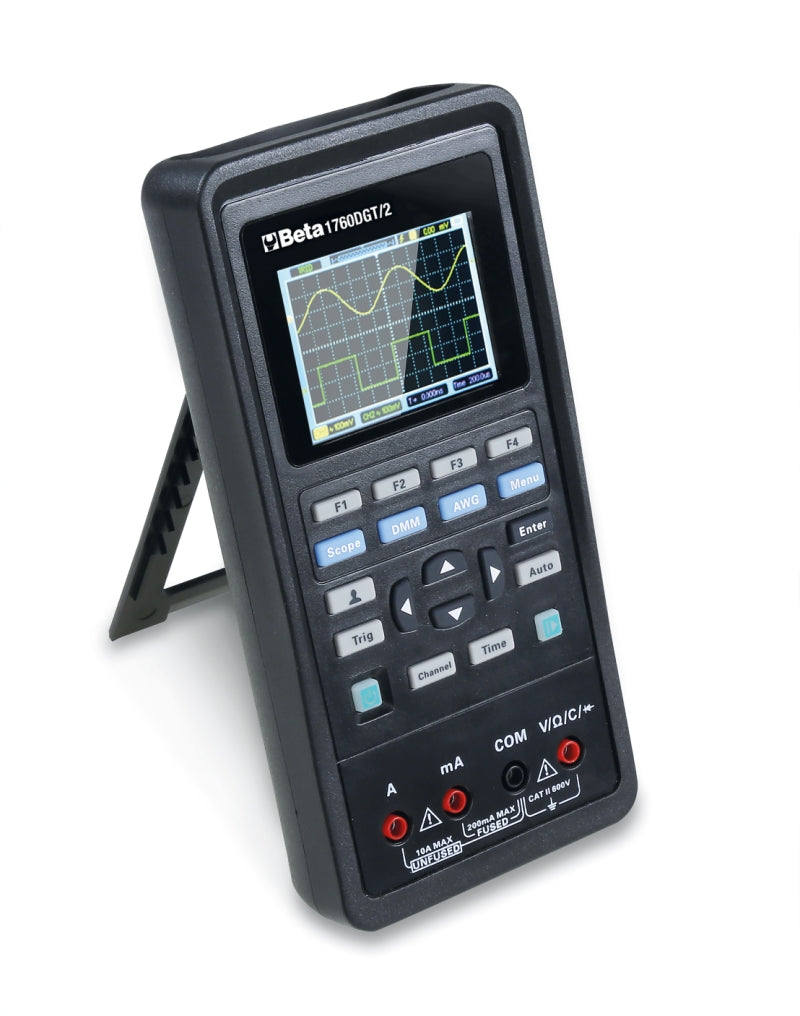

1760DGT/2-DIGITAL AUTOMOTIVE MULTIMETER
Description
Description

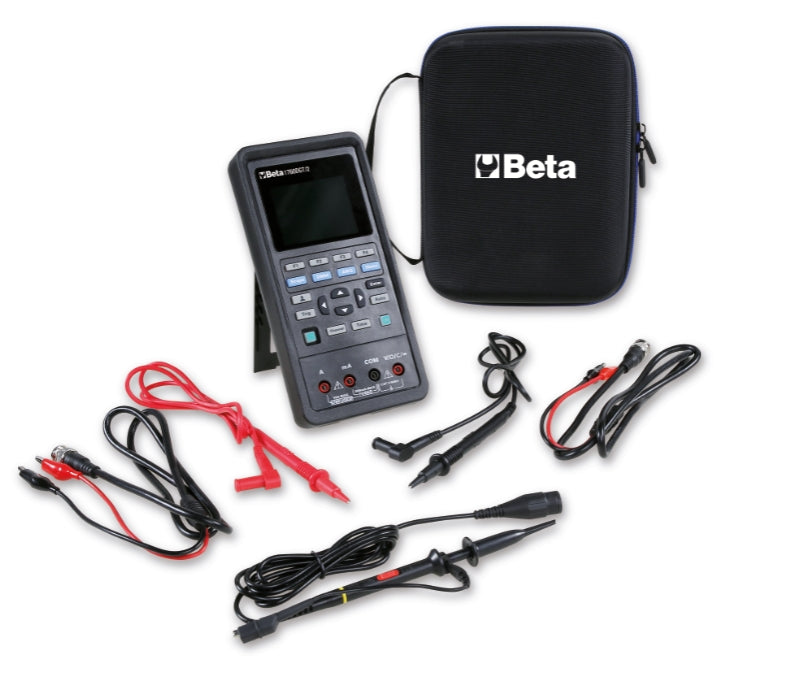

Kit Contents:

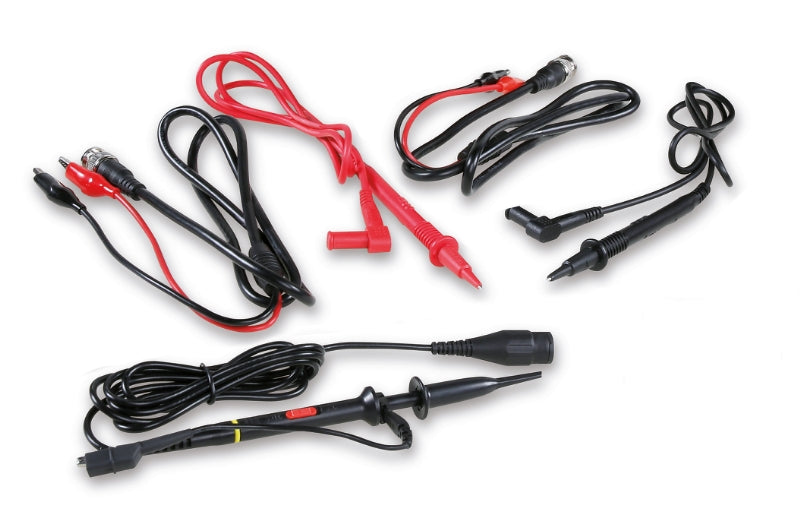

Multimeter tips
2 BNC crocodile clips for oscilloscope
Tip probe for oscilloscope (1X and 10X)
Battery charger
Nylon sheath
Technical data:
Display: 2.8 colour TFT
Resolution: 320 x 240 pixels
Power supply: 100V-240V AC - 50Hz-60Hz; DC INPUT 5V DC-2A
Battery: 2 x 2600 mAh
Dimensions: 199 x 98 x 40 mm
Weight: 624g

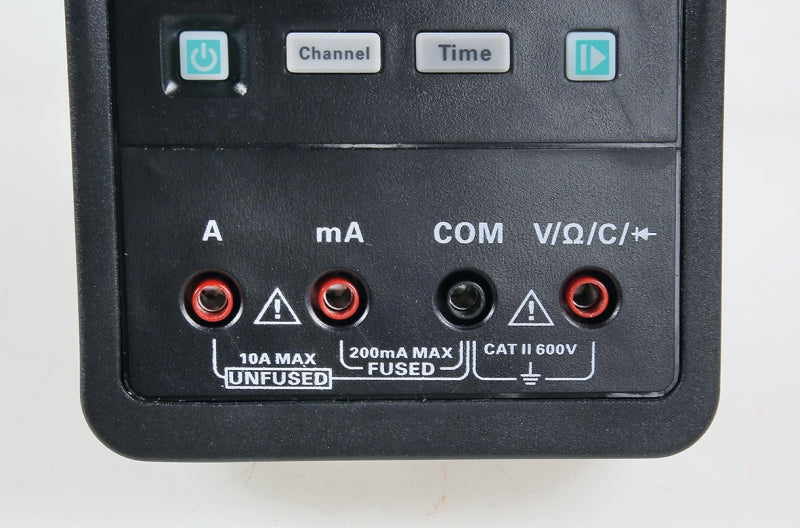

Multimeter Specifications:
Test: Voltage - Current - Resistance - Capacity - Diodes and On-Off
Max. voltage: 600V AC-DC
Max. current: 10A AC-DC
Max. resistance: 40MOHM
Max. capacity: 100uF
Oscilloscope Specifications:
Horizontal
Bandwidth: 40MHz
Sampling frequency range: 250MSa/s (single channel) - 125MSa/s (double channel)
SEC/DIV range: 5ns/div ÷ 500s/div 1 - 2 - 5 sequence
Vertical
VOLTS/DIV range: 10mV/div÷10V/divat BNC input
Selectable analogue - bandwidth limit - typical: 20MHz
Low frequency response (-3db): ?10Hz a BNC
DC Gain Accuracy: ± 3% for Normal or Medium acquisition mode - 10V/div ÷ 10 mV/div
Trigger
Type: Edge
Mode: Auto - Normal - Single
Slope: Rising - Falling - Rising - & Falling
Source: CH1 - CH2

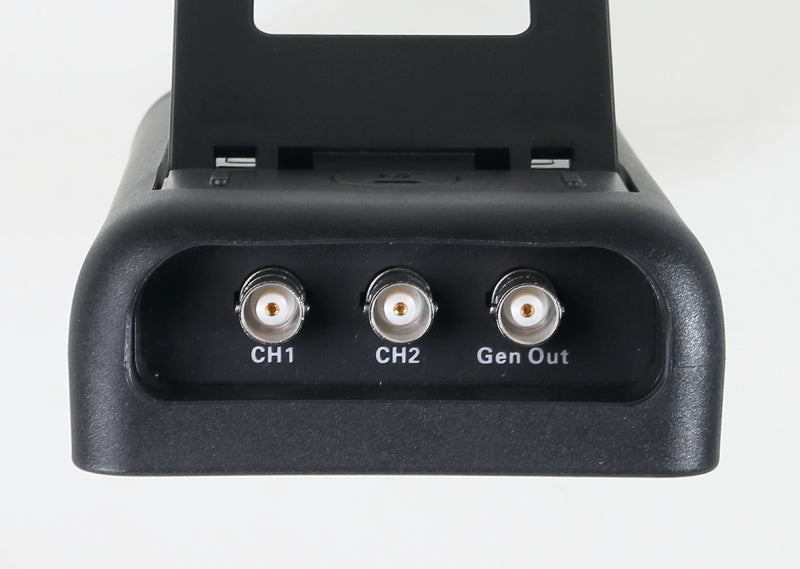

Input
Coupling: DC - AC or GND
Supported probe attenuation factors: 1X - 10X - 100X - 1000X
Arbitrary waveform generator
Waveform frequency: Sine (1Hz÷25MHz) - Square (1Hz÷10MHz) - Ramp (1Hz÷1MHz) - EXP (1Hz÷5MHz)
Width: 2.5Vpp (50?) - 5Vpp (high impedance)
Output impedance: 50?
