SKU:
017600020
1760/RMS-DIGITAL MULTIMETER 796 g
Regular price
$707.15 AUD
Unit price
/
Unavailable
Estimated Delivery
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Orders are typically delivered within 1-5 business days for metro areas and7-14 business days for regionalareas after dispatch (within 2 businessdays of payment). Backordered items will take anadditional3-6 weeks. More information.
About Beta Tools
About Beta Tools
Beta Tools is a leading provider of high-quality professional tools, renowned for their durability, precision, and innovative design. Trusted by industry professionals worldwide, Beta Tools offers a wide range of products that cater to the needs of mechanics, engineers, and craftsmen. More information.
1760/RMS-DIGITAL MULTIMETER
Regular price
$707.15 AUD
Unit price
/
Unavailable
Description
Description
New Item

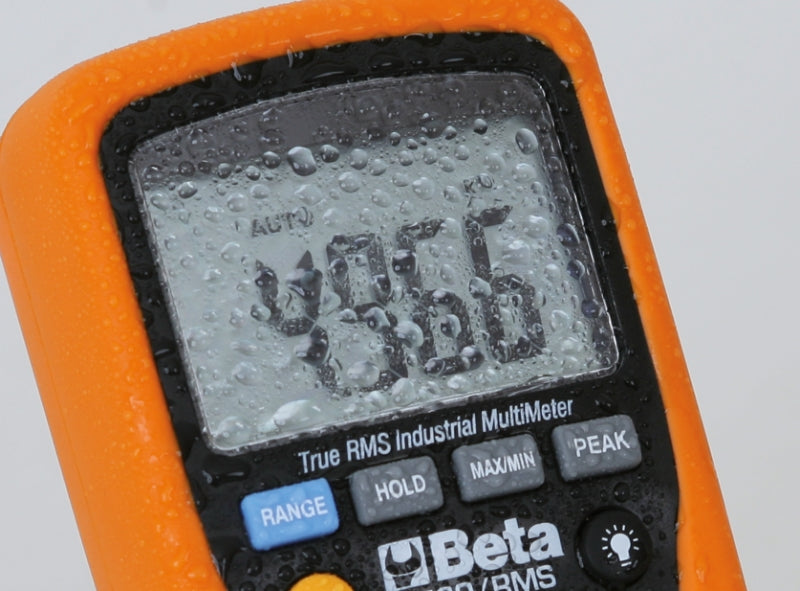

Shockproof: tested for falls up to 2 metres
Waterproof IP67
Features:
Water protection IP67
Protection up to 1000V
Tested for accidental falls up to 2 m
Protected inlets
Autoranging

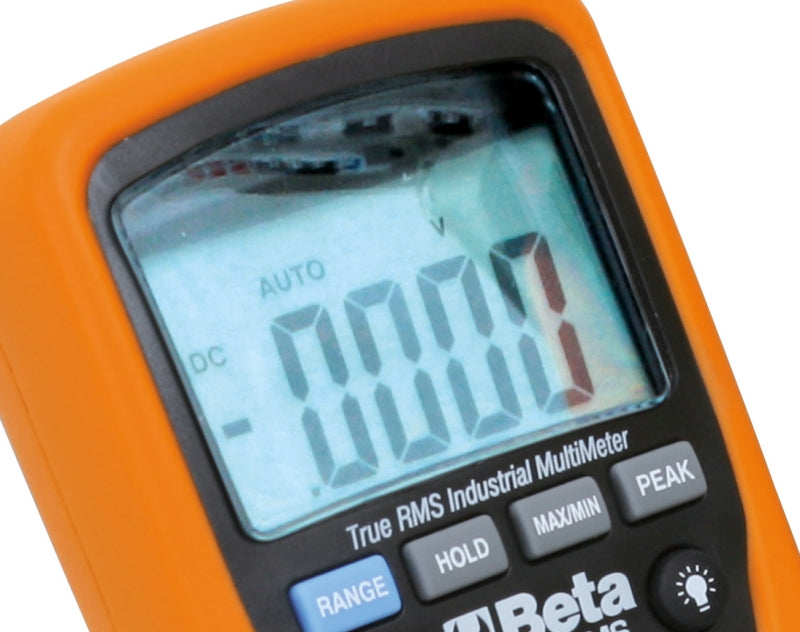

Large direct reading display - backlit - blue

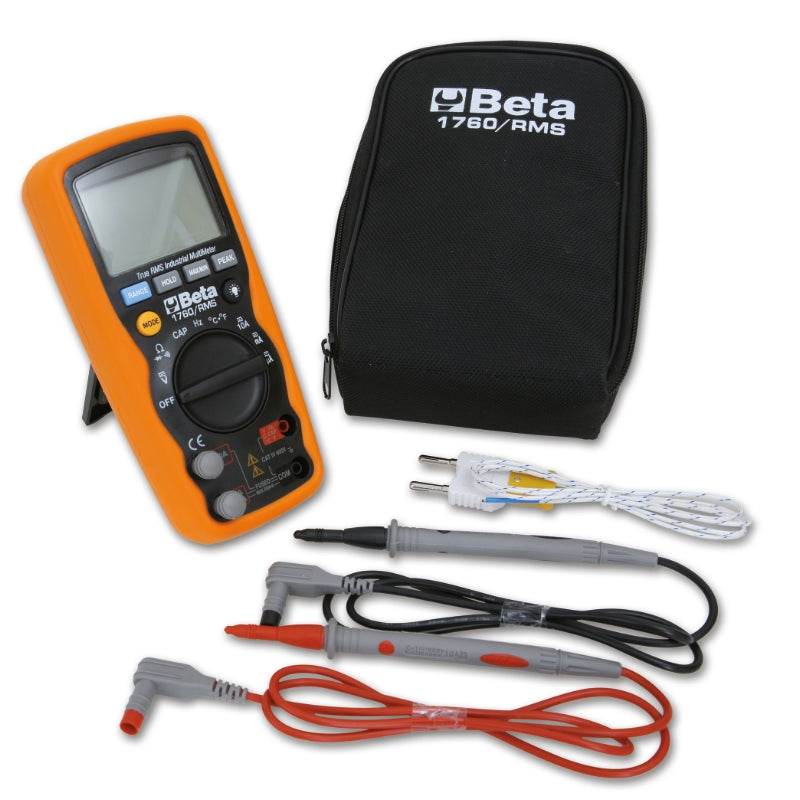

K type temperature probe (included)
Self-power down
Rubber terminal base for enhanced operating comfort
Double insulated terminals - 1000V - 1 m long
Supplied in a soft case
CAT IV 600V/ CAT III 1000V
Actual effective value TRUE RMS
Technical Features:
Measuring range Base accuracy
AC/DC voltage 110mV 600V ±0.8% - ±2% rdg
AC/DC current 110?A 10A ±1.5% - ±2% rdg
Resistance 110? 40M? ±1.2% - ±2.5% rdg
Capacity 11nF 40mF ±5% - ±10% rdg (up to 11mF)
Frequency 1100Hz 110 MHz ±1.2% - ±1.5% rdg
Temperature -32°C +1000°C ±3% - ±5% rdg
Diode test - 3V DC ±10% rdg
Continuity test <30 ? -
Shockproof: tested for falls up to 2 metres
Waterproof IP67
Features:
Water protection IP67
Protection up to 1000V
Tested for accidental falls up to 2 m
Protected inlets
Autoranging
Large direct reading display - backlit - blue
K type temperature probe (included)
Self-power down
Rubber terminal base for enhanced operating comfort
Double insulated terminals - 1000V - 1 m long
Supplied in a soft case
CAT IV 600V/ CAT III 1000V
Actual effective value TRUE RMS
Technical Features:
Measuring range Base accuracy
AC/DC voltage 110mV 600V ±0.8% - ±2% rdg
AC/DC current 110?A 10A ±1.5% - ±2% rdg
Resistance 110? 40M? ±1.2% - ±2.5% rdg
Capacity 11nF 40mF ±5% - ±10% rdg (up to 11mF)
Frequency 1100Hz 110 MHz ±1.2% - ±1.5% rdg
Temperature -32°C +1000°C ±3% - ±5% rdg
Diode test - 3V DC ±10% rdg
Continuity test <30 ? -
